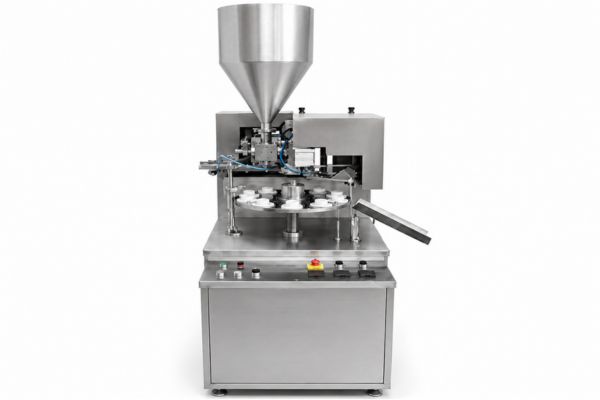

What is a Tube Filling Machine?
A Tube Filling Machine is a pharmaceutical packaging machine that fills and seals collapsible tubes — aluminum, plastic, or laminated — with products like ointments, creams, gels, lotions, and topical pharma preparations. In pharma plants it is used in topical, dermatology, dental, and cosmetic-OTC lines to deliver accurate dose, hermetic tail seal, and batch coding on every tube.
Modern tube filling machines are built in SS304 stainless steel with a PLC + HMI control system, servo-driven volumetric filling, and interchangeable sealing stations (hot-air, ultrasonic, or crimp-fold). They integrate with upstream product-prep vessels and downstream cartoning lines.
The core job of a tube filling machine is to deliver the right fill weight, with a leak-proof tail seal, on the right tube, every single time — without wastage, misalignment, or seal failure.
How does a Tube Filling Machine work?
A tube filling machine automates tube loading, orienting, filling, sealing, and coding in a continuous rotary or linear index. Here is the step-by-step process:
- Tube loading: Empty tubes are auto-loaded from a vibratory bowl or magazine into tube holders on a rotary indexing table.
- Tube orientation: A photo-eye or mechanical orienter aligns the tube seam or print mark so the tube sits correctly in the holder.
- Tube registration: An optional registration station prints or reads a pre-printed registration mark for label alignment.
- Cleaning / pre-treatment: For laminated tubes, an air-jet or pre-heater prepares the seal area for hot-air bonding.
- Filling: A precision nozzle dispenses the product into the tube using a servo-driven volumetric pump or peristaltic head. Fill weight is recipe-controlled and accurate to ±1%.
- Tail sealing: Plastic / lami tubes are heat-sealed (hot-air) or ultrasonically sealed. Aluminum tubes are folded and crimped with batch number embossed in the fold.
- Batch coding: An inkjet or laser coder prints batch number, MRP, and manufacturing date on the tube tail or crimp.
- Trimming & ejection: The sealed tube tail is trimmed, the tube is released from the holder, and discharged to a collection tray or downstream cartoner.
The entire filling sequence is PLC-controlled. The HMI lets the operator store fill-weight recipes, switch tube sizes with quick-change parts, view real-time output and rejection counts, and switch products with a single tap.
Types of Tube Filling Machines (with Specifications)
We supply six main types of tube filling machines for the pharmaceutical industry. The right choice depends on your tube material, output target, and seal format. Below is an honest, type-by-type comparison.
Automatic Tube Filling Machine
Most Common
The automatic tube filling machine is the workhorse of pharma topical lines. It runs hands-free on a rotary indexing table, fills tubes with servo-controlled volumetric accuracy, seals, codes, and trims — all in one pass.
| Output | 30–200 tubes per minute |
| Tube Diameter | 10 mm–50 mm |
| Tube Length | 50 mm–250 mm |
| Fill Volume | 1 g–250 ml |
| Fill Accuracy | ±1% with a servo-controlled volumetric filling system |
| Sealing Method | Interchangeable hot-air sealing, ultrasonic sealing or crimp-folding system |
| Coding | In-line inkjet or laser batch-coding system |
| Contact Parts | SS304 stainless steel |
| Control System | PLC with colour HMI touchscreen |
| Power Supply | 415 V AC, 3-phase, 50 Hz |
| Best For | Pharmaceutical ointments, creams, gels, dermatology products and Ayurvedic balms |
Semi-Automatic Tube Filling Machine
Startup Friendly
A semi-automatic tube filling machine is the right starting point for MSMEs, ayurvedic units, and small-batch topical lines. The operator manually loads each tube, and the machine fills, seals, and codes it automatically.
| Output | 8–25 tubes per minute, depending on operator efficiency |
| Tube Diameter | 10 mm–50 mm |
| Tube Length | 50 mm–250 mm |
| Fill Volume | 1 g–250 ml |
| Fill Accuracy | ±1.5% |
| Sealing Method | Hot-air sealing for plastic and laminated tubes or manual crimp sealing for aluminium tubes |
| Operation | Manual tube loading with foot-pedal-activated filling and sealing cycle |
| Power Supply | 230 V AC, single-phase |
| Best For | Startups, pilot plants, Ayurvedic manufacturing units and small-batch pharmaceutical production |
Aluminum Tube Filling Machine
For Aluminum Tubes
The aluminum tube filling machine is purpose-built for collapsible aluminum tubes. It uses a fold-crimp sealing head that mechanically folds the tube tail and embosses the batch number into the crimp — the gold standard for sterile and preservative-free topical preparations.
| Output | 30–120 tubes per minute |
| Tube Material | Pure aluminium tubes with epoxy or phenol lacquer coating |
| Tube Diameter | 13 mm–35 mm |
| Sealing Method | Mechanical folding and crimping with a 4-jaw or 6-jaw sealing system |
| Batch Coding | Batch details embossed directly into the crimp without ink or smudging |
| Best For | Sterile ophthalmic ointments, antifungal creams and preservative-free gels |
Plastic Tube Filling Machine
For Plastic Tubes
The plastic tube filling machine uses hot-air sealing to bond the tail of a polyethylene (PE) or polypropylene (PP) tube. It is the workhorse for cosmetic-OTC creams, ayurvedic balms, and hair-gel lines where lightweight plastic tubes are preferred.
| Output | 40–150 tubes per minute |
| Tube Material | PE, PP and multi-layer plastic tubes |
| Tube Diameter | 16 mm–50 mm |
| Sealing Method | Hot-air sealing at an operating temperature of 300°C–400°C |
| Cooling | Integrated in-line air-cooling station for stable tube sealing |
| Batch Coding | In-line continuous inkjet or thermal inkjet batch-coding system |
| Best For | Cosmetic and OTC creams, Ayurvedic balms, hair gels and face-wash tubes |
Lami-Tube Filling Machine
Premium Format
The lami-tube filling machine handles laminated tubes (ABL — aluminum barrier laminate, and PBL — plastic barrier laminate). It is the regulator-preferred format for high-barrier, export-grade pharma ointments where the product must not interact with aluminum.
| Output | 40–180 tubes per minute |
| Tube Material | ABL aluminium barrier laminate and PBL plastic barrier laminate tubes |
| Tube Diameter | 13 mm–50 mm |
| Sealing Method | Hot-air sealing with a laminate-specific temperature profile |
| Seal Width | Customizable seal width from 4 mm–8 mm |
| Best For | Export-grade steroid ointments, anti-acne gels and premium dermatology product lines |
Metal Tube Filling and Sealing Machine
All-Metal Format
The metal tube filling and sealing machine is the heavy-duty workhorse for tin-collapsible metal tubes used in dental cements, veterinary ointments, and industrial pharma products. It uses a multi-jaw crimp seal with embossed batch coding.
| Output | 20–80 tubes per minute |
| Tube Material | Tin, lead and aluminium collapsible metal tubes |
| Tube Diameter | 13 mm–50 mm |
| Sealing Method | Heavy-duty mechanical crimping with a 4-jaw or 6-jaw sealing system |
| Batch Coding | Batch details embossed directly into the tube crimp |
| Best For | Dental cements, veterinary ointments, industrial pharmaceutical products and export-grade metal tube packaging |
When to choose which Tube Filling Machine
Choosing the right tube filling machine depends on your tube material, output target, and product viscosity. Use this honest decision guide.
Choose Semi-Automatic
When your output is under 5,000 tubes/day and you want the lowest upfront cost for a small-batch line.
Choose Automatic
When you run a continuous topical or dermatology line and need recipe-based tube changeover with servo fill control.
Choose Aluminum Tube Filler
When your tube is pure aluminum and your product is sterile or preservative-free (ophthalmic ointments, anti-fungal creams).
Choose Plastic Tube Filler
When your tube is PE / PP and your product is a cosmetic-OTC cream, balm, or hair gel.
Choose Lami-Tube Filler
When you need a high-barrier ABL / PBL tube for export-grade ointments that must not contact aluminum.
Choose Metal Tube Filler
When your tube is tin or lead collapsible metal — dental cements, veterinary, or industrial pharma.
Where is a Tube Filling Machine used in pharma?
The tube filling machine is the primary packaging station in topical and dermatology pharma plants. In pharma, it is used in:
- Dermatology and topical lines — anti-fungal, anti-bacterial, steroid, and anti-acne ointments.
- Ophthalmic gel lines — preservative-free eye ointments in aluminum tubes.
- Cosmetic-OTC plants — face-wash, sunscreen, fairness cream, anti-aging creams.
- Ayurvedic and herbal units — pain balms, hair oils, herbal creams, kadha pastes.
- Dental product lines — tooth-gel, dental cements in metal tubes.
- Veterinary pharma — animal ointments, hoof-care products in metal tubes.
- Personal care — hair-gel, depilatory creams, intimate gels.
Every tube filling machine is built at our Ahmedabad facility with a 12-month warranty and on-site installation support, including product trials on your actual tubes and formulation.
Why choose our Tube Filling Machine
We will not pretend to be the cheapest. What we promise is honest engineering — every tube filling machine we ship is matched to your tube, your product viscosity, and your audit requirement.
Servo Volumetric Filling
±1% fill-weight accuracy across the batch, recipe-driven.
Interchangeable Sealing
Hot-air, ultrasonic, and crimp-fold stations on one platform.
Quick Changeover
Tool-free tube-holder change and HMI recipes for fast tube swaps.P.
PLC + HMI Control
Delta / Siemens with audit trail and recipe storage.
SS304 Build
Stainless steel frame and contact parts for pharma cleanroom compatibility
Multi-Tube Format
Aluminum, plastic, lami, and metal tubes — one platform.
1-Year Warranty
Comprehensive warranty with on-call service across India.
Spare Parts in Stock
95% of spare parts dispatched within 48 hours.
Tube Filling Machine — General Specificationsations
The standard range across our tube filling machine variants. Custom configurations are available for unique tube formats, viscosities, and audit requirements.
| Product Name | Tube Filling Machine |
| Machine Type | Automatic, semi-automatic, aluminium, plastic, laminate or metal tube configuration |
| Output Speed | 8–200 tubes per minute |
| Tube Material | Aluminium, PE, PP, ABL, PBL, tin or lead tubes |
| Tube Diameter | 10 mm–50 mm |
| Tube Length | 50 mm–250 mm |
| Fill Volume | 1 g–250 ml |
| Fill Accuracy | ±1% with volumetric servo filling or ±0.5% with a peristaltic filling system |
| Sealing Method | Hot-air sealing, ultrasonic sealing or mechanical fold-crimp sealing with a 4-jaw or 6-jaw system |
| Batch Coding | In-line inkjet coding, laser coding or embossed crimp coding |
| Product Viscosity Range | 1,000 cP–100,000 cP |
| Contact Parts | SS304 stainless steel |
| Non-Contact Parts | SS304 stainless steel or powder-coated mild-steel frame |
| Control System | PLC with colour HMI from Delta, Siemens or Mitsubishi |
| Power Supply | 415 V AC, 3-phase, 50 Hz or 230 V AC, single-phase |
| Air Requirement | 4–6 bar oil-free compressed air |
| Documentation | IQ, OQ and PQ support with CE and cGMP documentation |
| Warranty | 12 months from the date of dispatch |
Frequently Asked Questions — Tube Filling Machine
A Tube Filling Machine is a pharmaceutical packaging machine that fills and seals collapsible tubes — aluminum, plastic, or laminated — with products like ointments, creams, gels, lotions, and topical pharma preparations. In pharma plants it is used in topical, dermatology, and cosmetic-OTC lines to deliver accurate dose, hermetic seal, and batch code on every tube.
A Tube Filling Machine works by auto-loading empty tubes into tube holders, orienting them, filling through a precision nozzle, sealing the tail (heat for plastic/lami, crimp/fold for aluminum), batch-coding, and trimming. The whole sequence is PLC + HMI controlled with servo-driven filling and indexing for high accuracy.
The main types of tube filling machines are Automatic Tube Filling Machine, Semi-Automatic Tube Filling Machine, Aluminum Tube Filling Machine, Plastic Tube Filling Machine, Lami-Tube Filling Machine, and Metal Tube Filling and Sealing Machine. Choice depends on tube material, output speed, and seal format.
For pharmaceutical applications, a GMP-compliant automatic tube filling and sealing machine with SS304 contact parts, servo-driven volumetric filling, hot-air or ultrasonic sealing, and an inline batch-coder is best. It handles aluminum, plastic, and laminated tubes with consistent fill weight, hermetic tail seal, and audit-ready batch records.
A semi-automatic tube filling machine in India starts from around ₹2.5 lakh, while a fully automatic servo-driven aluminum and lami-tube filling and sealing machine can range from ₹6 lakh to ₹40 lakh depending on tube material, output speed, and sealing technology. Contact us for an exact quote.
A tube filling machine can fill ointments, creams, gels, lotions, sunscreen, hair-gel, anti-fungal and anti-bacterial creams, steroid ointments, cosmetic-OTC preparations, ayurvedic balms, dental gels, intimate gels, and similar viscous or semi-viscous pharma and personal-care products. Viscosity range typically covers 1,000 cP to 100,000 cP.
A tube filling machine is used in pharmaceutical topical and dermatology lines, cosmetic-OTC plants, ayurvedic and herbal units (balm, cream, oil), dental and ophthalmic gel lines, and any plant that packages semi-solid pharma preparations in collapsible tubes.
Yes. Modern automatic tube filling and sealing machines can be configured with interchangeable sealing stations — hot-air sealing for plastic and laminated tubes, fold-crimp sealing for aluminum tubes. Recipe-based changeover on the HMI lets the operator switch tube material in under 30 minutes.
A servo-driven volumetric tube filling machine typically achieves ±1% fill-weight accuracy on products in the 1 g – 200 g range. Peristaltic filling configurations achieve ±0.5% for sterile and high-value topical preparations where dose consistency is regulatory-critical.
Every tube filling machine from Pharma Machinery India ships with a 12-month comprehensive warranty covering the filling head, sealing station, PLC, and servo drives. Extended warranty and annual maintenance contracts (AMC) — including seal-jaw replacement — are available.
Yes. Our engineers provide on-site installation, commissioning, operator training, and product trials on your actual tubes anywhere in India or for export orders. Typical installation time is 2–5 days, including IQ/OQ documentation and recipe tuning on your formulation.
