Product Overview
A vial washing machine is the first critical step in any aseptic injectable line. It removes particulate, microbial, and endotoxin loads from incoming glass vials before they enter the depyrogenation tunnel and aseptic filling zone. Two configurations dominate pharmaceutical production:

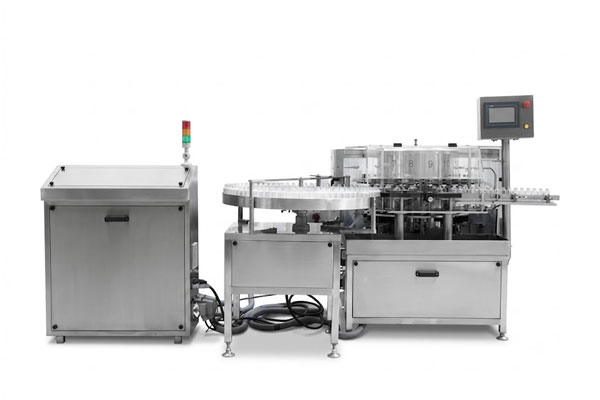

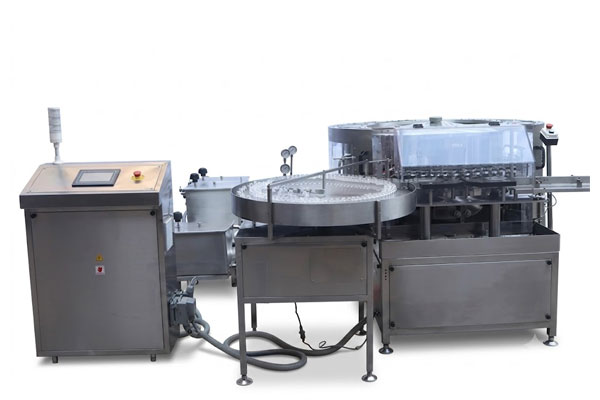

- Rotary Gripper Type – full internal + external wash, WFI final rinse, and HEPA-filtered air blow-off. Used in parenteral and lyophilized injectable lines where vials arrive unsterilized in bulk.

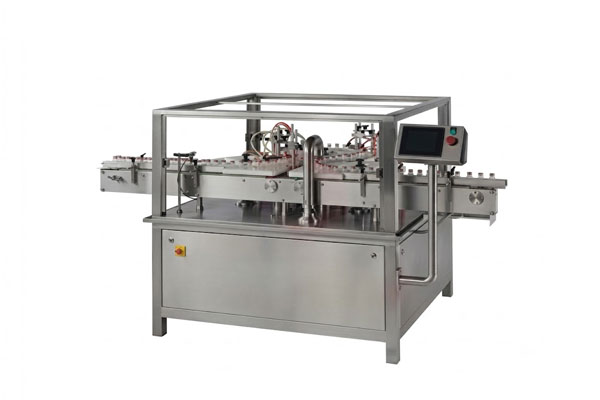

- External Vial Washing Machine – outside-only wash with rotating brushes and high-pressure spray jets. Used for pre-sterilized RTU vials or as a coarse pre-wash before tunnel entry.
Both machines are fabricated from SS 316L stainless steel with Ra <= 0.4 um contact surfaces, designed for direct integration with a hot-air depyrogenation tunnel and downstream aseptic filling under ISO 5 / Grade A unidirectional airflow.
300
Vials / min (rotary gripper)
400
Vials / min (external)
8
Wash stations (rotary gripper)
Ra <= 0.4 um
Contact surface finish
Sub-Product
Rotary Gripper vs External vs Ultrasonic vs Air-Jet: Which Washer Do You Need?
The pharmaceutical industry uses four principal vial-washing approaches. The right choice depends on the incoming vial condition, downstream aseptic requirements and the validation burden your quality assurance team can support.
| Parameter | Rotary Gripper | External Washer | Ultrasonic | Air-Jet (Vacuum) |
|---|---|---|---|---|
| Wash Coverage | Internal + External | External only | Internal + External | Internal only |
| Throughput | 60–300 VPM | 100–400 VPM | 30–120 VPM | 80–200 VPM |
| Final Rinse | WFI | Purified water, with WFI optional | WFI | WFI with vacuum-pulsed rinsing |
| Capital Cost (USD) | $30K–$80K | $12K–$25K | $50K–$120K | $40K–$90K |
| Best For | Bulk unsterilized vials feeding a depyrogenation tunnel | Pre-sterilized RTU vials, ampoules and bulk external dust removal | Heavily soiled or returned vials and very small formats | Small-volume vials with narrow or complex internal geometry |
| Validation Burden | High: full IQ/OQ/PQ, endotoxin and particulate validation | Moderate: visual cleanliness and bioburden validation | High: sonic power mapping and frequency validation | High: vacuum integrity and pulse-profile validation |
| Common Downstream | Depyrogenation tunnel + aseptic filling | Nest de-bagger + aseptic filling for RTU vials, or pre-washing before a tunnel | Depyrogenation tunnel + aseptic filling | Depyrogenation tunnel + aseptic filling |
| Particle Performance | Suitable for meeting USP <788> requirements for parenterals | External cosmetic cleaning only; does not improve internal particulate levels | Excellent internal cleaning, particularly for stubborn soils | Excellent internal particulate removal for narrow-neck vials |
Rule of Thumb:
If your production line processes bulk vials before a depyrogenation tunnel, a rotary gripper washer is generally the preferred option. For pre-sterilized RTU vials, ampoules or external surface cleaning, an external washer is usually sufficient. Ultrasonic and vacuum air-jet systems are more specialized solutions suited to particular validation challenges, such as heavily contaminated returnable vials or 1–2 ml vials with very narrow necks.
If your production line processes bulk vials before a depyrogenation tunnel, a rotary gripper washer is generally the preferred option. For pre-sterilized RTU vials, ampoules or external surface cleaning, an external washer is usually sufficient. Ultrasonic and vacuum air-jet systems are more specialized solutions suited to particular validation challenges, such as heavily contaminated returnable vials or 1–2 ml vials with very narrow necks.
Inside the Washing Cycle: 8-Stage Rotary Gripper Process
Each vial spends 8-14 seconds in the rotary gripper washer, depending on format and number of stations. A typical 8-station cycle:
- Loading and inversion: vials from the unscrambler or infeed conveyor are picked up and inverted 180 degrees by cam-actuated fingers.
- Internal pre-rinse: purified water (USP <645>) injected through the vial mouth to flush loose particles.
- Internal wash: recirculated purified water + pulsed compressed-air injection creates turbulent flow that scrubs the interior wall.
- Internal purified water rinse: removes residual wash water and loosened soil.
- Internal WFI final rinse: USP <1231> Water for Injection – the critical rinse that sets the bioburden and endotoxin baseline for the depyrogenation tunnel.
- External spray: external wash with purified water; for sticky soils, optional detergent injection (followed by a purified water rinse).
- HEPA-filtered air blow-off: ISO 5 / Grade A air curtain removes residual water film; vials leave the machine dry to the touch.
- Re-inversion and discharge: vials re-inverted to mouth-up orientation and discharged to the tunnel entry conveyor at matched speed and pitch.
Throughout the cycle, the WFI loop is monitored for conductivity and temperature; out-of-spec rinses divert to drain and alarm the operator before a non-conforming vial reaches the tunnel.
Washing Cycle Validation: A 6-Step How-To
Validation is non-negotiable for any aseptic injectable line. The following sequence is a practical, audit-tested approach used by our customers’ QA teams. It aligns with WHO TRS 986 Annex 2, EU GMP Annex 1 (2022), 21 CFR 211.94, and the relevant USP chapters.
Step 1 – Define user requirements and worst-case vial format.
Document the smallest and largest vial formats, the highest-tolerated bioburden load on incoming vials, the target WFI consumption per vial, and the in-process limits for conductivity, TOC, and endotoxin on the final rinse water. Lock these in a User Requirements Specification (URS) before ordering.
Step 2 – Perform IQ and OQ on the installed machine.
Execute the IQ checklist (utilities, instrumentation, materials of construction, calibration) followed by OQ tests (no-vial dry cycle, alarm verification, sensor calibration, interlock function) over 3 consecutive successful runs. Document deviations and resolutions.
Step 3 – Conduct a cleaning recovery study.
Spike vials with a placebo soil (e.g., placebo + 0.1% India ink) and run them through the cycle. Measure visual cleanliness, swab recovery of the placebo (HPLC), and TOC of the final rinse water to demonstrate >= 3-log reduction of the challenge soil.
Step 4 – Sample and test final rinse water.
Collect WFI final-rinse samples at start, middle, and end of the worst-case run. Test for conductivity (< 1.3 uS/cm at 25 degrees C), TOC (< 500 ppb), endotoxin (< 0.25 EU/ml by USP <85> LAL), and particulate per USP <788>.
Step 5 – Confirm downstream performance in the depyrogenation tunnel.
Run washed vials through the depyrogenation tunnel and verify endotoxin reduction >= 3 log (USP <85>) and bioburden < 1 CFU per 100 ml post-tunnel. Confirm vial surface temperature uniformity with a calibrated IR probe grid.
Step 6 – Compile the validation report and ongoing monitoring plan.
Issue the final validation report signed by QA, engineering, and production heads. Define the ongoing monitoring program: weekly rinse-water testing, monthly swab recovery, and annual revalidation triggers (e.g., format change, machine major overhaul).
Estimated timeline: 3-4 weeks from IQ start to final report, depending on lab turnaround. Estimated cost: $6,000 – $12,000 in QA and lab fees for a single vial format.
USP, EP, and Annex 1 Compliance
Every machine is engineered and documented against the following standards:
- USP <788> – Particulate Matter in Injections
- USP <789> – Particulate Matter in Ophthalmic Solutions
- USP <85> – Bacterial Endotoxin Test (LAL)
- USP <645> – Water Conductivity
- USP <1231> – Water for Pharmaceutical Purposes
- EP 2.9.19 – Particulate Contamination: Sub-visible Particles
- EP 2.6.14 – Bacterial Endotoxins
- EU GMP Annex 1 (2022) – Manufacture of Sterile Medicinal Products
- 21 CFR 211.94 – Drug Product Containers and Closures
- 21 CFR Part 11 – Electronic Records and Signatures
- WHO TRS 986 Annex 2 – WHO GMP for Pharmaceutical Products
- ISO 9001:2015 – Quality Management
- CE Machinery Directive 2006/42/EC
- ISPE Baseline® Guide – Sterile Product Manufacturing Facilities
Inline Integration with Tunnel and Filling
A vial washer is rarely a standalone machine. It is part of a tightly synchronized line:
- Upstream: Vial unscrambler (for bulk vials) or nest/tub de-bagger (for RTU vials)
- Washer: Rotary gripper (or external, depending on configuration)
- Depyrogenation Tunnel: 3-zone hot-air tunnel at 300-340 degrees C, Fh >= 1000, endotoxin reduction >= 3 log
- Cooling Zone: vial cooling to <= 30 degrees C before aseptic entry (laminar airflow, Grade A)
- Aseptic Filling: rotary piston or peristaltic filling under Grade A unidirectional airflow
- Stoppering: rubber stopper placement and pre-pressing
- Capping: aluminium cap sealing (if not done in the stopper star-wheel)
- Inspection: automated visual inspection for particles, cracks, fill volume, stopper presence
Our washers are designed for direct feed into our 3-zone depyrogenation tunnel, with matched conveyor speed, pitch, and entry height to eliminate any operator handling between wash and depyrogenation.
Frequently Asked Questions
A rotary gripper washer holds each vial by the neck and performs internal + external washing with WFI final rinse. It is used for bulk unsterilized vials feeding a depyrogenation tunnel. An external washer only cleans the outside with brushes and spray jets – used for pre-sterilized RTU vials or coarse pre-wash.
An 8-station cycle: inversion, internal pre-rinse, internal recirculated wash, internal purified water rinse, internal WFI rinse, external spray, HEPA-filtered air blow-off, re-inversion. Total cycle time 8-14 seconds per vial.
For a 10 ml vial on an 8-station machine, expect 5-8 ml of WFI per vial (4-6 ml internal + 1-2 ml external). At 200 VPM, that is 60-95 L/hour. A recirculation-recovery loop on the pre-rinse stages reduces WFI consumption by 30-40%.
Yes. Rotary gripper units are designed for inline tunnel integration. Washed, WFI-rinsed, and air-blown vials are conveyed directly into the tunnel at matched speed and pitch, with no operator handling between wash and depyrogenation.
DQ, IQ, and OQ protocol templates; MTCs for SS 316L contact parts; surface roughness reports; calibration certificates; FAT report; cleaning validation guide covering swab recovery, rinse sampling, and endotoxin testing per USP <85>.
Breakage in a well-tuned rotary gripper washer is below 0.1%. The gripper mechanism uses a soft polymer insert and a cam profile that controls clamping force. If a vial breaks, glass falls into a sloped tray and is flushed to drain; a broken-vial sensor stops the machine and alarms the operator.
Standard configurations cover 2 ml – 100 ml tubular glass vials (ISO 8362-1), 14-52 mm diameter, 30-115 mm height. Custom grippers for non-standard formats (moulded glass, infusion bottles up to 500 ml) are available.
230V/415V AC 3-phase; 4-6 bar oil-free compressed air; purified water (USP <645>) at >= 600 L/h; WFI (USP <1231>) at >= 100 L/h; HEPA-filtered air for the blow-off station.
For RTU vials, an external washer is usually sufficient – the inside is already sterile and pre-siliconized. Many customers pair an external washer with a nest de-bagger feeding directly to filling.
Ampoules are sealed, so only the outside is washed. Vials are open-mouthed and require both internal and external washing plus depyrogenation before filling.
Customer Outcomes
“We replaced a 12-year-old linear washer with the rotary gripper unit for our 10 ml vaccine line. Endotoxin on the final rinse dropped from 0.18 EU/ml to under 0.05 EU/ml on average, and we cleared the WHO prequalification audit on the first attempt.”
– Plant Manager, Sterile Injectables Manufacturer, Hyderabad (reference available on request)
“Our RTU vial line was bottlenecked at the de-bagger. Adding the external washer upstream let us run continuous at 320 VPM through the filling isolator. Operators were trained in 2 hours.”
– Engineering Lead, Biologics CDMO, Boston, USA (reference available under NDA)
“The gripper changeover time is what sold us on this supplier – 12 minutes from a 10 ml format to a 50 ml format, no tools. We run 4 SKUs per shift on the same line.”
– Production Head, Generic Injectables Manufacturer, Cairo, Egypt (reference available on request)
Installation, Validation, and Support
Every machine is delivered as a turnkey project with the following scope:
- Pre-shipment Factory Acceptance Test (FAT) at our facility, with wash cycle performance data and water-quality results
- On-site installation, commissioning, and Site Acceptance Test (SAT)
- IQ and OQ execution support, including protocol walkthrough with your QA team
- Operator and maintenance training (typically 3 days)
- 1-year comprehensive warranty covering parts and labor
- Lifetime remote support via video call, TeamViewer, and WhatsApp business
- Annual Maintenance Contract (AMC) options including preventive maintenance and recalibration
- Spare parts kits shipped within 24-48 hours globally from regional warehouses
Typical delivery times: Standard machines ship in 6-8 weeks; customized configurations in 8-12 weeks. Installation and validation typically add 2-3 weeks on site.
